Enabling HTTP/2 support in froxlor

[nisamudeen97]

Hi,

We wish to enable HTTP/2 support in our forxlor server which is currently running apache server version "Server version: Apache/2.4.10 (Debian)".    Debian GNU/Linux 8 \n \l

https://http2.pro/doc/Apache

Has any one tried to enable the same in forxlor ?  We are running shared hosting.  Look forward to have detailed update.



[d00p]

http/2 support has been added already (https://github.com/Froxlor/Froxlor/commit/bab982a0e6d13f3a6671fb578a489f28f0615119) - you need to use the current development version (https://github.com/Froxlor/Froxlor/archive/master.zip)

[nisamudeen97]

Hi,

Does it mean we have to update the current froxlor version ?  it will automatically get updated?   What is the procedure to get updated ?

[d00p]

Sure you have to update, how else would you be able to use a newer version? Yes, froxlor will tell you that a newer version has been installed and will guide you through a update process when logged in as admin.

Procedure:

- backup froxlor/lib/userdata.inc.php

- download https://github.com/Froxlor/Froxlor/archive/master.zip

- extract content of Froxlor-master/* to your current installation directory

- put back the backed up userdata.inc.php to froxlor/lib/userdata.inc.php

- chown either with webserver user (mod_php) or the used local user (e.g. froxlorlocal) when using fcgid/php-fpm

- open froxlor panel in browser and login as admin

[nisamudeen97]

Hi,

Thx for the update.  I have enabled  http2 in forxlor as updated in the above steps.  See the screen shots.   I can also see "OCSP stapling" and "HSTS" .  Cool.

But upon testing I could see the below error in apache.

AH00526: Syntax error on line 12 of /etc/apache2/sites-enabled/35_froxlor_ssl_vhost_dumdum.conf:
Invalid command 'Protocols', perhaps misspelled or defined by a module not included in the server configuration
Action 'configtest' failed.



https://www.shivering-isles.com/http-2-getting-ready-on-debian-with-apache2/

I have then followed the above doc and enabled http2 in apache.  As i was using "Apache 2.4.10",  I have to update it to "Apache/2.4.29"  which is still in latest test release of Debian..

But unfortunately I cannot still see http2 enabled On header testing.



curl --http2 -I domain.com

HTTP/1.1 200 OK
Date: Thu, 02 Nov 2017 04:44:53 GMT
Server: Apache/2.4.29 (Debian)
Last-Modified: Thu, 02 Nov 2017 03:32:23 GMT
ETag: "e-55cf7a2e85d40"
Accept-Ranges: bytes
Content-Length: 14
Content-Type: text/html

Can you please help me to fix this ?



[lanbo]

Same problem nisamudeen97.

I managed to install it on Ubuntu. I found it strange you have to activate http/2 on the vhost to be able to activate it on other domains.

I posted an issue in case it helps: https://github.com/Froxlor/Froxlor/issues/575



That said, I finally installed it.

apache2ctl -M | grep "http2"
 http2_module (shared)

apachectl -V
Server version: Apache/2.4.34 (Ubuntu)

openssl version
OpenSSL 1.1.0h  27 Mar 2018



But curl --http2 -I https://xxxx.com
curl: (1) Unsupported protocol

(chrome inspector shows protocol http/1.1).



Did you solve it?



Thanks

[lanbo]

Ok, I have this in the logs:

[Wed Sep 26 11:40:15.116715 2018] [http2:warn] [pid 30078] AH10034: The mpm module (prefork.c) is not supported by mod_http2. The mpm determines how things are processed in your server. HTTP/2 has more demands in this regard and the currently selected mpm will just not do. This is an advisory warning. Your server will continue to work, but the HTTP/2 protocol will be inactive.

I'm using FCGID.

Any ideas?

[d00p]

The error message literally tells you what the problem is. Mpm_prefork does not work together with http2

[dxd]

31 minutes ago, lanbo said:

Ok, I have this in the logs:

[Wed Sep 26 11:40:15.116715 2018] [http2:warn] [pid 30078] AH10034: The mpm module (prefork.c) is not supported by mod_http2. The mpm determines how things are processed in your server. HTTP/2 has more demands in this regard and the currently selected mpm will just not do. This is an advisory warning. Your server will continue to work, but the HTTP/2 protocol will be inactive.

I'm using FCGID.

Any ideas?

I have the same problem , until yesterday everything was ok. Any solution what to do ?

[lanbo]

On 9/26/2018 at 12:08 PM, d00p said:

The error message literally tells you what the problem is. Mpm_prefork does not work together with http2

Yeah, it's tricky.



sudo a2dismod mpm_prefork
sudo a2enmod mpm_event
service apache2 restart
 * Restarting Apache httpd web server apache2 [fail] *
      The apache2 configtest failed.
        Apache is running a threaded MPM, but your PHP Module is not compiled to be threadsafe.  You need to recompile PHP.

I'm using FCGID. Is PHP-FPM thread-safe?



UPDATE:



I managed to make it work with php-fpm, extrausers and:



a2dismod mpm_prefork
a2enmod mpm_event
a2enmod proxy_fcgi
a2enmod http2


Remember to activate in the settings that you are using php-fpm, proxy_fcgi and http/2.

It's specially important to remember to activate you are uding php-fpm also for the froxlor vhost or otherwise you won't be able to access Froxlor again. I missed that step and it was a mess fixing it.

[d00p]

Try to test here: https://tools.keycdn.com/http2-test

Works for my domains on debian perfectly with the latest froxlor version.

[nisamudeen97]

Hi,

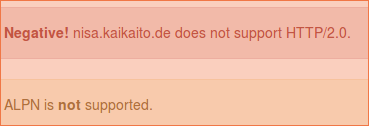

I have tested it and it is showing not supported result





[d00p]

please nopaste a ssl vhost of one of your domains

[nisamudeen97]

root@w03:/etc/apache2/sites-enabled# cat 35_froxlor_ssl_vhost_nisa.kaikaito.de.conf
# 35_froxlor_ssl_vhost_nisa.kaikaito.de.conf
# Created 06.11.2017 11:46
# Do NOT manually edit this file, all changes will be deleted after the next domain change at the panel.

# Domain ID: 45 (SSL) - CustomerID: 13 - CustomerLogin: kaikaito
<VirtualHost 192.168.73.56:443>
  ServerName nisa.kaikaito.de
  ServerAlias *.nisa.kaikaito.de
  ServerAdmin np@kaikaito.it
  SSLEngine On
  SSLProtocol -ALL +TLSv1 +TLSv1.2
 Protocols h2 http/1.1
  SSLCompression Off
  SSLHonorCipherOrder On
  SSLCipherSuite ECDH+AESGCM:ECDH+AES256:!aNULL:!MD5:!DSS:!DH:!AES128
  SSLVerifyDepth 10
  SSLCertificateFile /etc/ssl/froxlor-custom/nisa.kaikaito.de.crt
  SSLCertificateKeyFile /etc/ssl/froxlor-custom/nisa.kaikaito.de.key
  SSLCertificateChainFile /etc/ssl/froxlor-custom/nisa.kaikaito.de_chain.pem
  <IfModule mod_headers.c>
    Header always set Strict-Transport-Security "max-age=31535995"
  </IfModule>
  DocumentRoot "/var/customers/webs/kaikaito/nisa/"
  FcgidIdleTimeout 30
  SuexecUserGroup "kaikaito" "kaikaito"
  <Directory "/var/customers/webs/kaikaito/nisa/">
    <FilesMatch "\.(php)$">
      SetHandler fcgid-script
      FcgidWrapper /var/www/php-fcgi-scripts/kaikaito/nisa.kaikaito.de/php-fcgi-starter .php
      Options +ExecCGI
    </FilesMatch>
    Require all granted
    AllowOverride All
  </Directory>
  Alias /webalizer "/var/customers/webs/kaikaito/webalizer"
  ErrorLog "/var/customers/logs/kaikaito-error.log"
  CustomLog "/var/customers/logs/kaikaito-access.log" combined
</VirtualHost>



[d00p]

# apache2ctl -M | grep "http2"



[nisamudeen97]

apache2ctl -M | grep "http2"
 http2_module (shared)



[d00p]

# openssl version

Quote

 If OpenSSL is the library you use, you need at least version 1.0.2.



[nisamudeen97]





 openssl version
OpenSSL 1.0.1t  3 May 2016 (Library: OpenSSL 1.0.2l  25 May 2017)



[nisamudeen97]

updated Open ssl version to latest.  Still it is like the same



openssl version
OpenSSL 1.1.0f  25 May 2017

[d00p]

Sorry, no idea, works fine here

[nisamudeen97]

Hi,

I have also rebooted the server to make sure updated things loads good.  Still it is not working.   What you think is the cause ?  Bugs ??



root@:~# uname -a
Linux  3.16.0-4-amd64 #1 SMP Debian 3.16.43-2+deb8u5 (2017-09-19) x86_64 GNU/Linux
root@:~# cat /etc/issue
Debian GNU/Linux 9 \n \l
